AgileDoc® Design Specifications

Standard Templates for System Documentation

Overview

AgileDoc for Emerson Process Management DeltaVTM generates detailed system documentation that encompasses continuous and sequential control strategies, the control network configuration, and recipes and associated formulas.

The AgileDoc Standard Report Template Library provides pre-configured Detailed Design Specification (DDS) report formats that enable comprehensive documents to be generated for DeltaV systems with minimal configuration effort. The library scope and document content were developed in collaboration with major manufacturers to ensure that the reports are suitable for Good Manufacturing Practice (GMP) applications. The resulting reports ensure that a DeltaV system is completely and accurately documented with minimal effort.

Features and Benefits

  • Pre-configured DDS templates for documenting a DeltaV system



  • Extensive library encompasses continuous and sequential control strategies, control network configuration, recipes and associated formulas



  • Ensures document integrity throughout DeltaV system lifecycle



  • Document header can easily be adapted to site standards



  • Library templates can act as basis for site-specific reports instead of configuring completely new reports



  • Lower development, deployment and validation cost



  • Standard report design simplifies ongoing support

AgileDoc Standard Report Templates

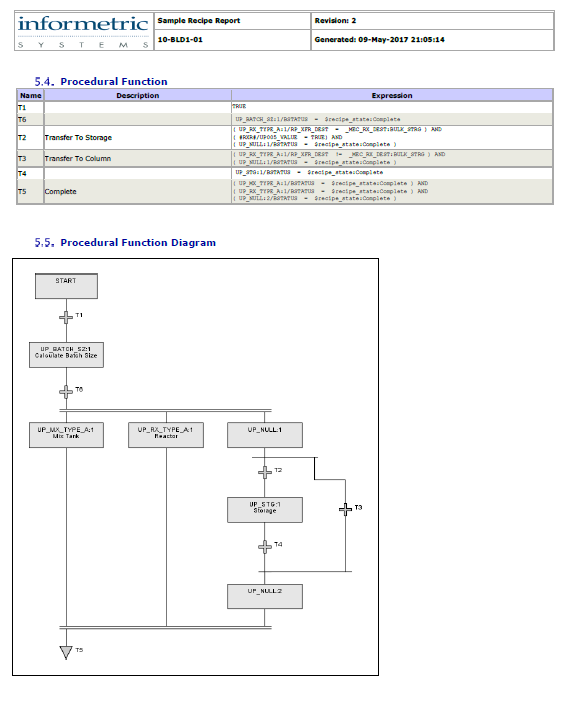

4210 Recipe DS Report Template

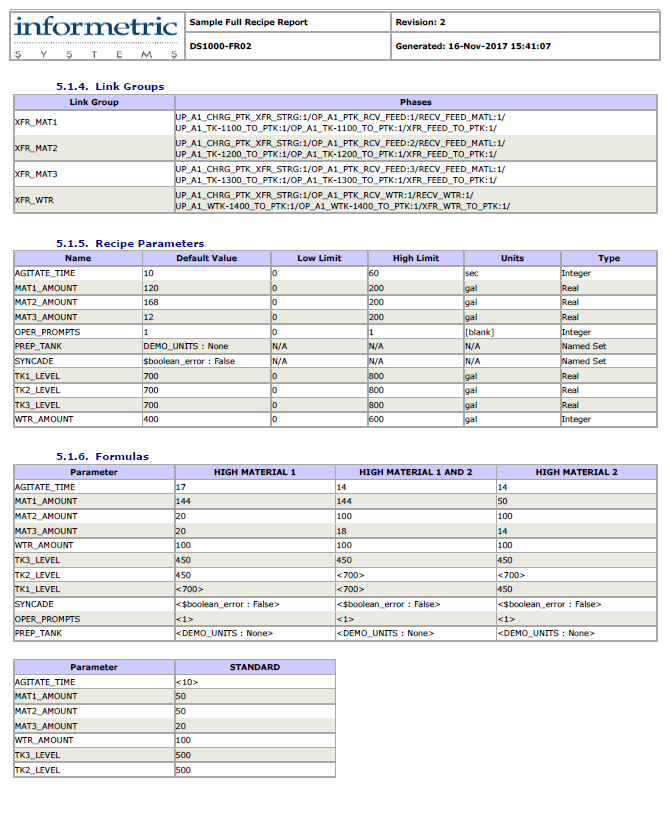

4211 Full Recipe DS Report Template

4220 Phase Class DS Report Template

4230 Module DS Template

4235 Composite Template DS Report Template

4240 Module Class DS Template

4250 Module Instance DS Template

4260 Unit Class DS Template

4270 Control Network Configuration Template

4280 Unit Instance DS Template
